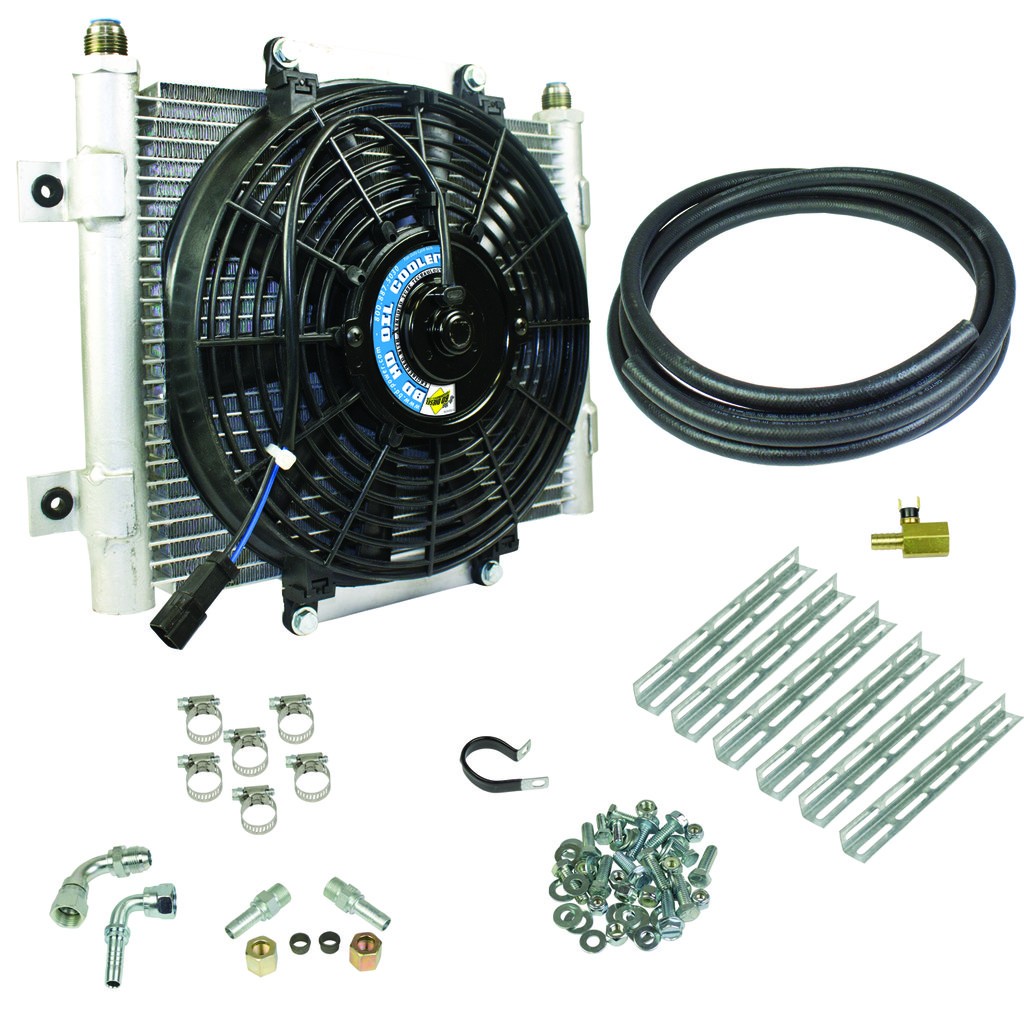

Keep your transmission oil temps down with this 1030606-1/2 Xtruded Trans Oil Cooler from BD Diesel. With the large surface area, turbulent oil flow design and 200 micro extruded passages you will get more complete cooling....22% more cooling than other designs!
This kit includes all fittings, clamps, hoses and hardware. Also includes a build-it-yourself galvanized bracket kit for quicker and cleaner installations - no wasting time fabricating brackets out of scrap metal.
Other features:
- Large 5/8-inch ports prevents inlet/outlet restriction
- Furnace brazed rails have been tested to 300psi of pressure
- Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
- 33,930 BTU/HR and in excess of 30,000 GVW!
- The pre-wired loomed harness with fuse and relay comes with plug-in connectors
*Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
Dodge 47RH / 47RE / 48RE / 68RFE - 1/2-inch Cooler Lines
Ford 5R110 - 1/2-inch Cooler Lines
Parts Warranty 12-Months / 24,000 Miles
