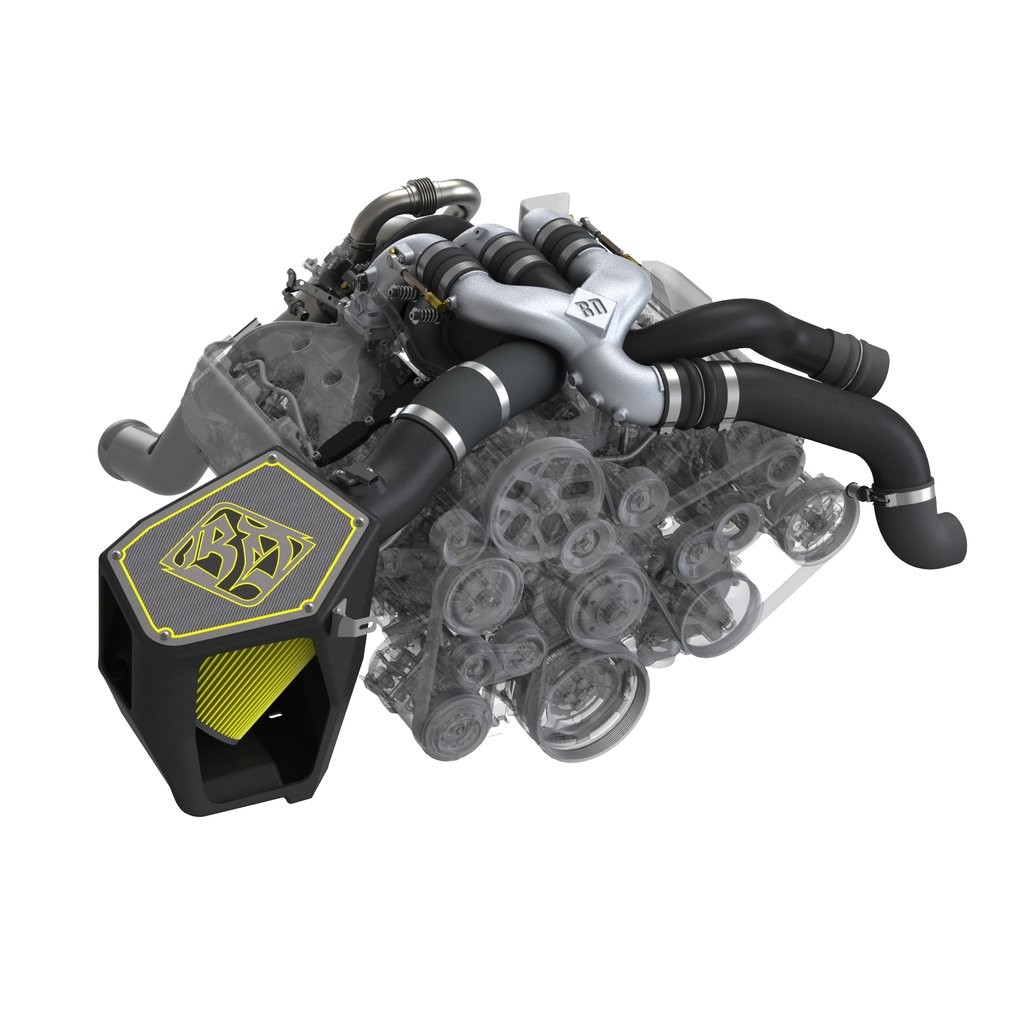

1045801 BD Diesel Scorpion S369SX-E Turbo Kit for Ford 2011-2016 6.7L Powerstroke

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

1045801 BD Diesel Scorpion S369SX-E Turbo Kit for Ford 2011-2016 6.7L Powerstroke

In stock

Be the first to review this product




BD Diesel's Scorpion Turbo Kits are top quality, complete, clean install kits.





This kit comes with the Scorpion S369SX-E Turbo and fits the Ford 2011-2016 6.7L F250/F350.

$3,895.00

The 2011-16 Powerstroke is without a doubt one of the most popular selling diesel vehicle on the market today. I have been a die hard Cummins man most of my life, and now I drive a 6.7L Ford. I don't care how die hard you may be, once you've towed with a 6.7L Powerstroke, yer gonna want one. The way the engine and transmission work together is a thing of art.

What is not a thing of art, is the factory single sequential turbo. They are very efficient and make very quick responsive horse power. When it comes to tuning them and asking for more power the stock turbo simply can't hang. We've been blowing these turbos up since they first came out in 2011.

If you are wanting to make more than 500hp then you are going to need an upgraded turbo. The BD Scorpion kit is one of the cleanest and nicest to install. We have installed more than 100 of them with nothing but happy customers.

If you want more than 600 horse power we highly recommend the Venom Dual Fuelers.

Want even more power and reliability out of your 2011-2016 Ford 6.7L Powerstroke?  Upgrade to BD Diesel's new Scorpion Turbo Kit.  The Borg Warner S369SX-E Series Turbo w/ FMW included in this kit supplies up to 625hp.  This is a performance turbo and race tuning is required (not included).

Kit Includes:

  • Borg Warner S369SX-E series turbocharger with FMW
  • 1.00 AR Ratio
  • BD 90-deg compressor cover with 3in outlet
  • BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube
  • BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA).
  • BD high strength A356 aluminum intake horns
  • BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses
  • BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter
  • BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems
  • BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision
  • Stainless heat shield keeps heat in and intake temperatures down
  • Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor
  • BD Boot Lock ready with boss positions on intake and outlets







Note:

A/R Ratios are suited for non-wastegated applications. External wastegate fitted to exhaust manifold optional.

Requires tuner with special programming due to VGT removal: EZ Lynk tuned by PPEI, or SCT (custom tuned)

2015-up model years require 1045805 application kit

This kit is compatible with stock or aftermarket water-to-air intercooler.

Larger turbochargers are available for even higher horsepower.  Give us a shout if you would like to discuss options available.  770-267-3322

Warranty is12mo / 12,000mi  *Wheel burst resulting from over speeding is not warrantable*

Not for sale on licensed California vehicles.

**Call for availability**
